Product Details

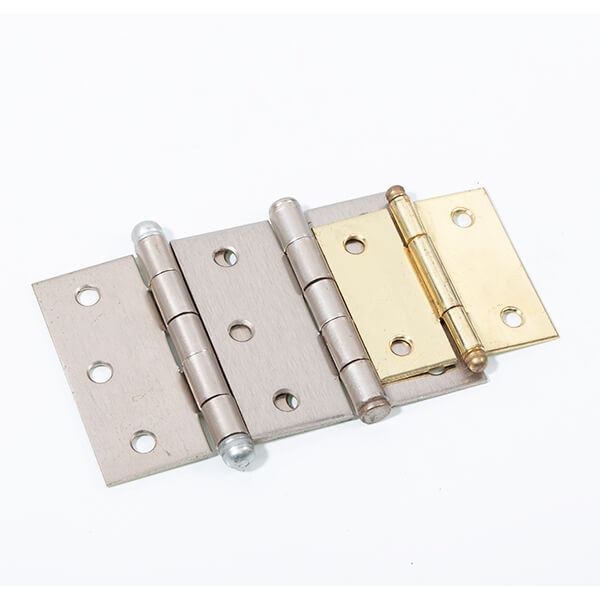

| Mexican square hinge | ||||||||
| Specification | material | g/pay | Alength | Blength | Clength | D-axis diameter | Eaperture | F pin diameter |
| 2x2x1.6 | iron | 70 | 50 | 50 | 1.5 | 6.8 | 5.2 | 4.5 |
| 2x2x1.6 | iron | 90 | 50 | 50 | 1.5 | 8.2 | 5.2 | 4.5 |
| 2.5x2.5x1.8 | iron | 150 | 63.5 | 63.5 | 1. | 9 | 5.2 | 4.5 |
| 3x3x1.5 | iron | 160 | 76 | 76 | 1.5 | 7.8 | 6 | 5.9 |
| 3x3x1.4 | iron | 165 | 75 | 75 | 1.4 | 9.2 | 6.6 | 5.9 |
| 3x3x2 | iron | 230 | 76 | 76 | 2 | 10.2 | 6.6 | 5.9 |
| 3.5x3.5x1.5 | iron | 235 | 89 | 89 | 1.5 | 9.4 | 6.6 | 5.9 |
| 3.5x3.5x2 | iron | 305 | 89 | 89 | 2 | 10.2 | 6.6 | 5.9 |
| 3.5x3.5x2.2 | iron | 340 | 89 | 89 | 2.2 | 10.8 | 7.2 | 5.9 |
| 4x4x1.5 | iron | 290 | 100 | 100 | 1.5 | 9.4 | 6.6 | 5.9 |
| 4x4x2.2 | iron | 428 | 101.6 | 101.6 | 2.2 | 10.8 | 7.2 | 5.9 |
| 4x4x2.5 | iron | 480 | 101.6 | 101.6 | 2.5 | 11.5 | 7.2 | 5.9 |
